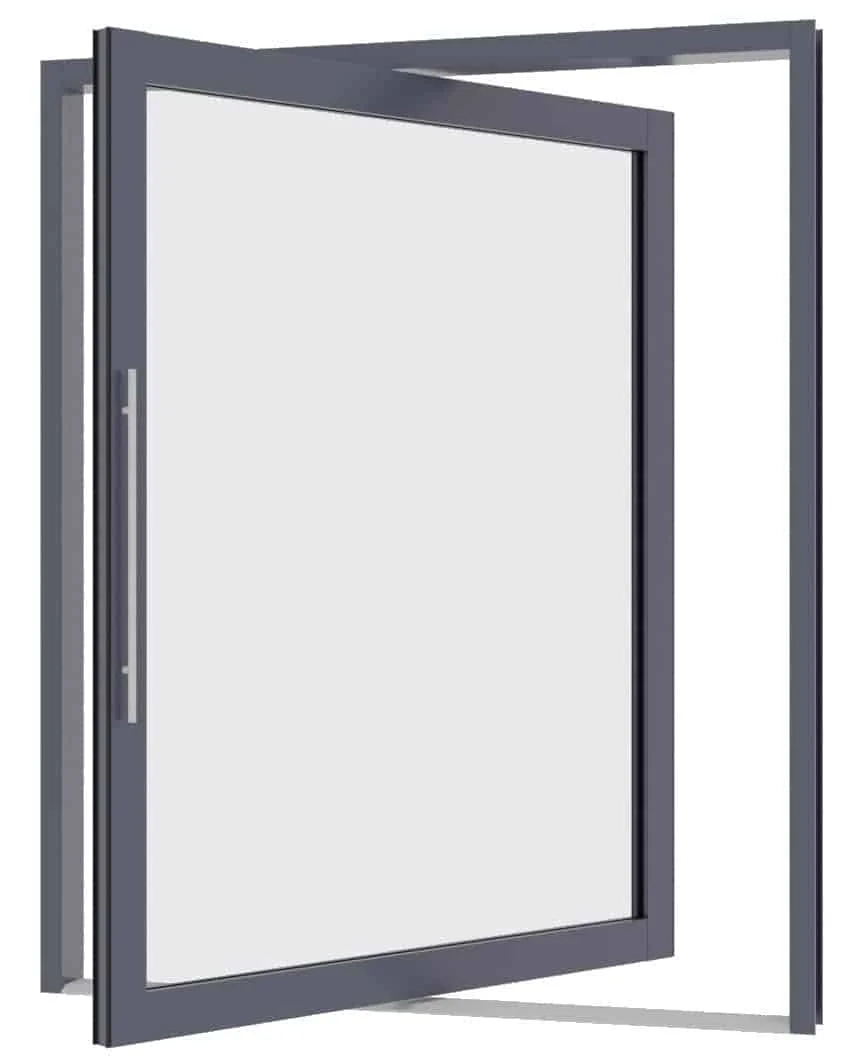

Commercial grade pivot door
The Commercial Pivot Door can add a real point of difference to your next project. Swivelling on a pivot instead of typical door hinges allows for a larger door panel and a larger range of rotation than a typical hinged door. We offer a range of style options from the standard (~70mm) to wide (~110mm).
Typically coupled to either the 10044-SG or 10044-DG Centre Glazed systems, the Commercial Pivot Door can be coupled with all 100mm systems:
- 10044-SG Centre Glazed System
- 10044-DG Centre Glazed System
- 10055-DG Centre Glazed System
- 10055-SG Front Glazed System
- 10055-DG Front Glazed System
Features:
- Highly adaptable system
- Dual seal door stiles for maximum performance
- Wide Stile and rail options
- A number of mid rail size options
- Beaded rails allow for on-site glazing
Specifications:
- Door panel size: 45mm depth
- Single glazing: 5mm – 10.5mm
- Double glazing: 24mm
