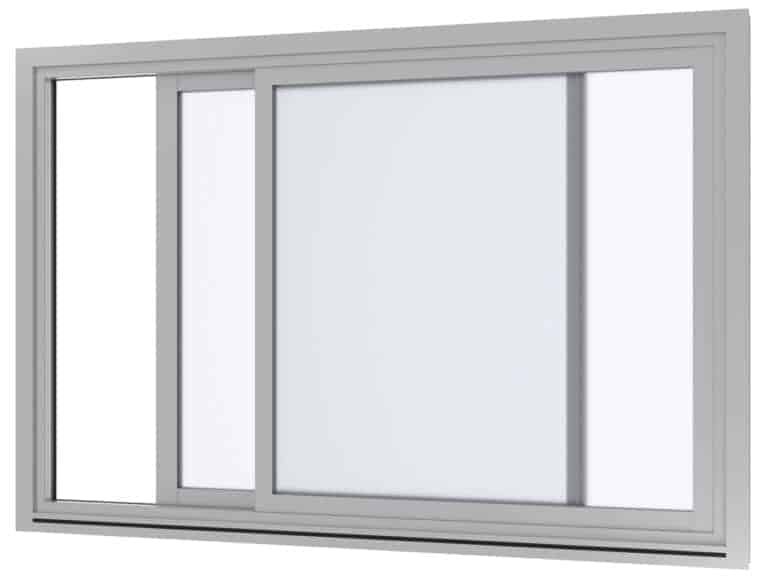

Commercial grade sliding window
The Ultramax Sliding Window integrates with the 10055-DG/SG Centre Glazed framing system, a popular choice for schools, nursing homes and high end residential homes.
It has a standard 55mm frame, with an optional 30mm narrow frame significantly reducing the profile of the window making it an ideal choice for high end residential projects.
With a maximum sash height of 2100mm, a maximum width of 900mm and a weight limit of 180kg, this is why we regard the Ultramax as the ultimate sliding window.
Features:
- Single and Double glazing available
- Optional narrow Sill and Frame available
- Stainless steel ball bearing rollers
- Couples with the 10055-DG/SG Centre Glazed system
- Includes an integrated sump sill/transom
- Compatible with corner designs
- Large range of sub-framing available
Specifications:
- Frame size:
Standard: 84mm height x 101mm depth
Narrow: 60mm height x 101mm depth (requires subsill) - Single glazing: 4mm – 6.5mm
- Double glazing: 18mm
- Frame size:
